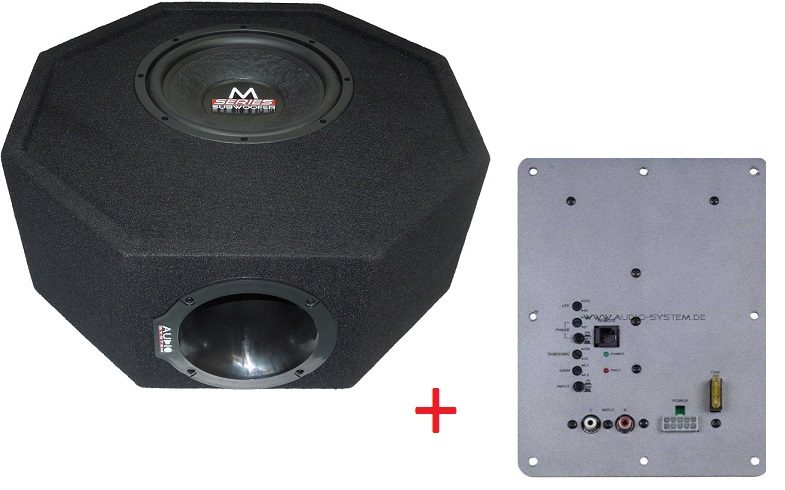

Audio system SUBFRAME M 10 ACTIVE ACTIVE SERIES SUBFRAME Boom Box Subwoofer + Monoamplifier H300.1

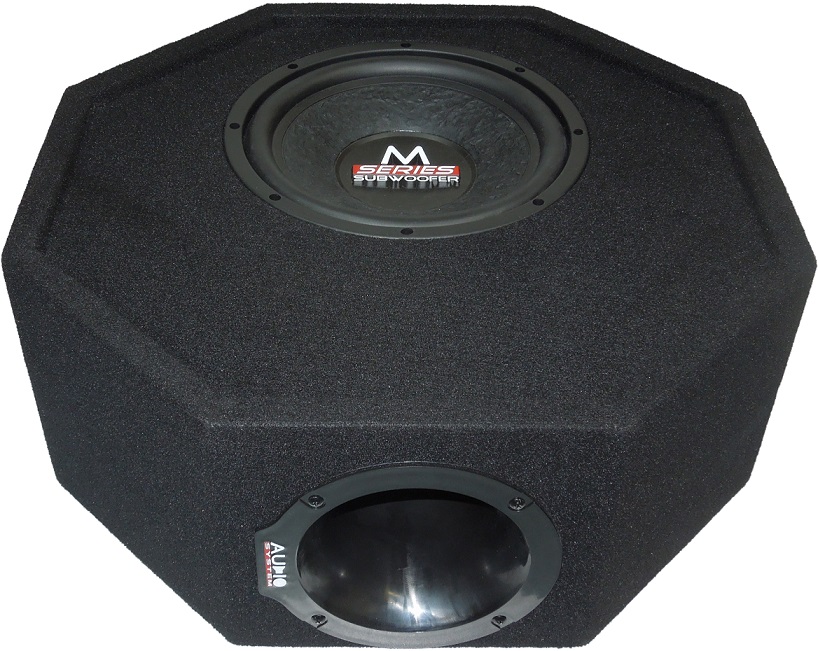

AUDIO SYSTEM subframe M10 Boom Box Subwoofer octagonal bass reflex enclosure

25cm subwoofer , 200 WRMS 4 ohm , single voice coil including bass reflex enclosure


22 l octagonal bass reflex enclosure + 25 cm Subwoofer

Ideal for the spare box
highly resistant casing made of MDF
Mass of the case L = 520mm b = 470mm h = 200mm


300/200 Watt
1.5 "voice coil
Impedance 4 Ohm
very stable sheet metal basket in piano lacquer with gold plated terminals
multiple Belüfungssystem
geschäpfte paper cone



+

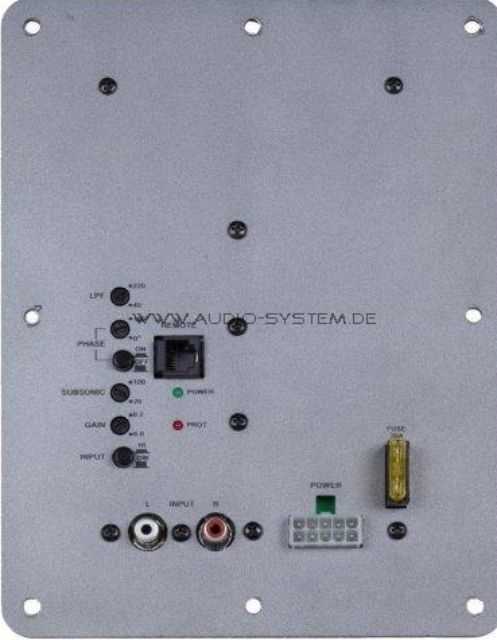

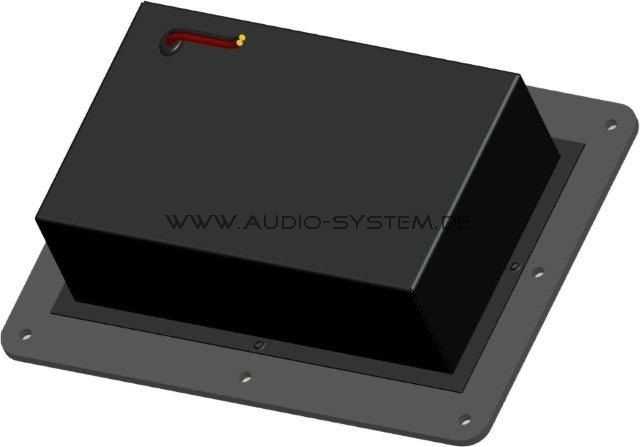

Audio System Helon 300.1 H -SERIES 1- Channel Digital Monoblock

Digital mono high power amplifier with SMD technology , low pass filter , subsonic filter , continuously variable 0-180 ° phase shift
possible up to 89 % efficiency , wired remote RTC (optional ) RCA line level input with automatic switching

1x 300 WattRMS power at 2 ohms ( 14.4V )
1x 200 WattRMS power at 4 ohms ( 14.4V )

210x55x160 mm
